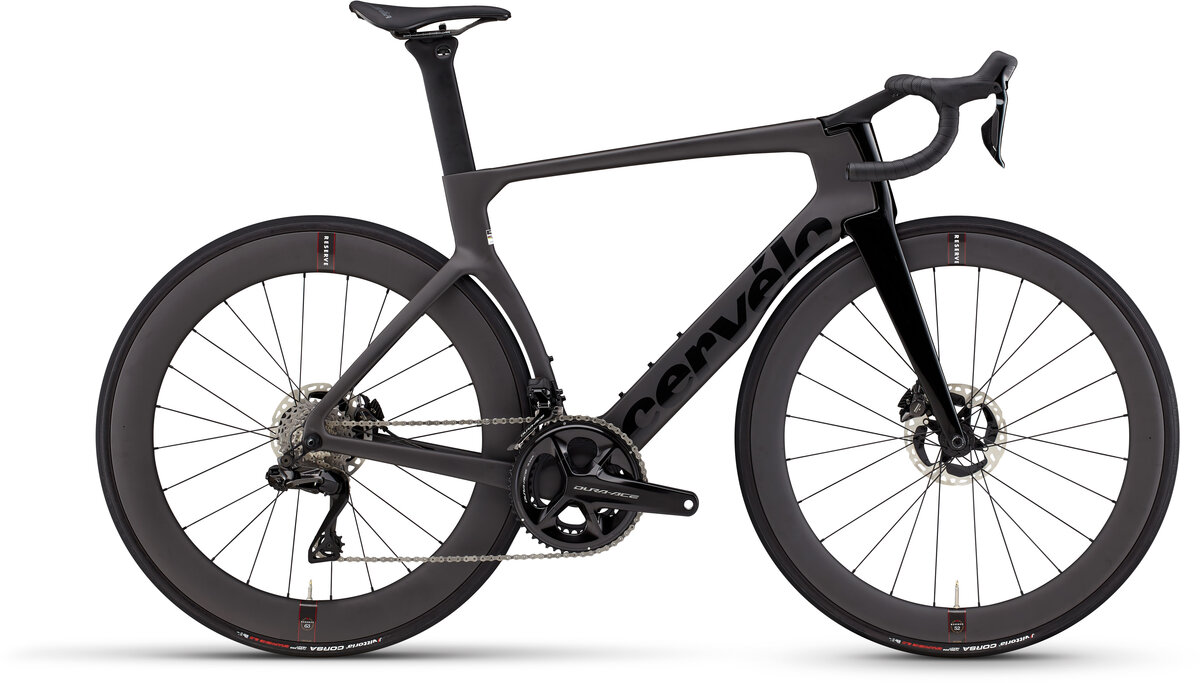

Cervelo S5 Dura-Ace Di2
$10,400.00
$13,000.00
Details
The S5 prioritizes aerodynamic performance and stiffness, making it a platform preferred by the fastest sprinters in the world. You've no doubt noticed the now-iconic V-Stem. We optimized that shape to deliver the best possible performance in the wind, hid the cables inside, and made enough bar/stem/stack options to fit just about anyone. It'll clear 28mm tires, too so you can eke out even more aero advantage.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Reach (mm) | 367 | 376 | 384 | 392 | 401 |
| Stack (mm) | 496 | 519 | 542 | 565 | 588 |
| Head Tube Angle | 71° | 72° | 73° | 73.5° | 73.5° |
| Front Center (mm) | 579 | 580 | 581 | 588 | 604 |
| Bottom Bracket Drop (mm) | 72.5 | 72.5 | 70 | 70 | 67.5 |
| Head Tube Length (mm) | 69 | 87 | 109 | 130 | 157 |
| Top Tube Length (mm) | 520 | 535 | 550 | 565 | 581 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Standover Height (mm) | 707.5 | 729.2 | 747.4 | 775.3 | 805.9 |
| Trail (mm) | 57.1 | 57 | 57.1 | 57 | 57 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Fork Offset (mm) | 58 | 52 | 46 | 43 | 43 |
| Wheelbase (mm) | 973 | 974 | 975 | 982 | 999 |
| Chainstay Length (mm) | 405 | 405 | 405 | 405 | 405 |
Specs
| Fork | Cervélo All-Carbon, Tapered S5 Fork |
|---|---|
| Wheels |
Front: Reserve 52, 25.4 IW, Zipp ZR1 SS, 24H, centerlock, tubeless compatible Rear: Reserve 63, 24.4mm IW, Zipp ZR1 SS,12x142mm, HG freehub, 24h, centerlock, tubeless compatible |
| Tires | Vittoria Corsa TLR G 700x28c |
| Bottom Bracket | Ceramic Speed, BBright for 24mm spindle |
| Crankset | Shimano Dura Ace, R9200, 52/36T, 12 Speed |
| Shifters | Shimano Dura Ace, R9270, 12 speed |
| Front Derailleur | Shimano Dura Ace, R9250, 12 speed |
| Rear Derailleur | Shimano Dura Ace, R9250, 12 speed |
| Cassette/Freewheel | Shimano Dura-Ace, 11-30, 12 Speed |
| Chain | Shimano M9100, 12 speed |
| Brakes | Shimano Dura Ace |
| Rotors | Shimano MT900 Centerlock |
| Handlebars | Cervélo HB14 Carbon |
| Stem | Cervélo ST35 Carbon |
| Headset | FSA IS2 1-1/8 x 1-3/8 |
| Seatpost | Cervélo SP20 Carbon |
| Saddle | Selle Italia NOVUS BOOST EVO SuperFlow Carbon |
| Accessories & Extras | Cervelo Handlebar Front Computer/Accessory Mount, Cervelo Rear Accessory Mount |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Five Black / 51cm | 04000990440288 | 0I0S5FDI1C51 | CER369406438 |
