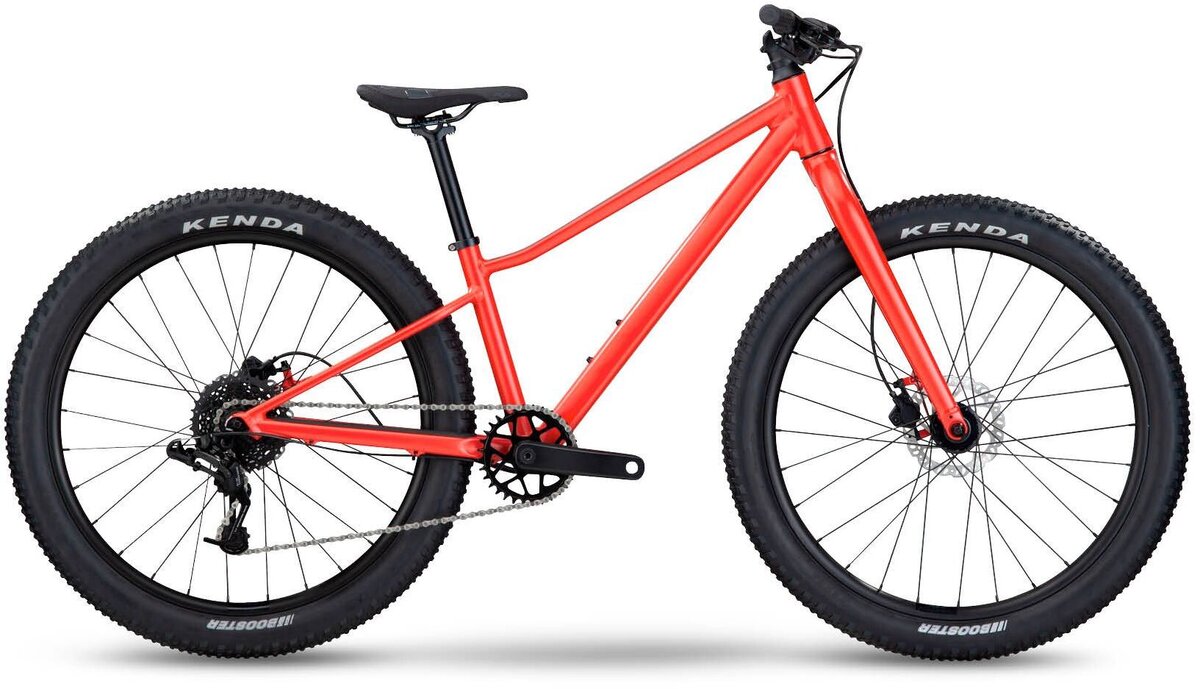

BMC Twostroke AL 24
$699.00
$849.00
Details
A lightweight aluminum frame, with a premium durable powder coating and a dedicated geometry to smaller riders. Featuring 24" wheels, an 8-speed SRAM groupset and TEKTRO brakes, with tailored ergonomics for a confidence inspired ride. Simple. Functional. Fun.
| Size | 24 |
|---|---|
| Rider Height CM | 120-145 |
| Stack MM | 507 |
| Reach MM (reach) | 350 |
| Seat Tube MM (st) | 300 |
| Top Tube MM (tt) | 505 |
| Head Tube MM (ht) | 105 |
| Seat Tube Angle (sa) | 73 |
| Head Angle (ha) | 68 |
| Rear Center MM (rc) | 392 |
| Front Center MM (fc) | 538 |
| Wheelbase MM (wb) | 972 |
| BB Drop MM (drop) | 40 |
| Fork Length MM (fl) | 412 |
| Fork Rake MM (fr) | 40 |
| Trail MM (trail) | 82 |
| Crank Length MM | 140 |
| Stem Length MM | 35 |
| Stem Angle | ±6 |
| Bar Width MM | 650 |
| Bar Rise MM | 20 |
| Backsweep | 5 |
| Post Offset MM | 15 |
Specs
| Frame | Twostroke AL 24" Lightweight Aluminium with Powder Coat Finish, 1 1/8" Head Tube, BSA Threaded Bottom Bracket, 160mm Post Mount, 9X135mm QR |
|---|---|
| Fork | Twostroke AL 24" Lightweight Aluminum with Powder Coat Finish, 140mm Post Mount, 9X100mm QR |
| Rims | DD32 |
| Hubs | CNC Machined Alloy Hub Body - Sealed Bearings - Quick Release |
| Tires | Kenda Booster 24x2.4" |
| Chainrings | Lightweight Forged Alloy Cranks 32T 1x Specific Narrow Wide Chainring 140mm |
| Shifters | SRAM X4 8Spd Trigger |
| Rear Derailleur | Rear Derailleur SRAM X4 Medium Cage |
| Cassette/Freewheel | SUNRACE 11-34T |
| Chain | SRAM 8spd |
| Brakes | TEKTRO HD-M286 - Short Reach Levers - 140mm Rotors |
| Handlebars | SDG Slater Handlebar - 650mm Wide - 20mm Rise - 19mm Bar Ends - 31.8mm Clamp. |
| Stem | BMC 35 mm Length - ± 6 Angle |
| Seatpost | Alloy 27.2mm |
| Saddle | SDG Fly Jr |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Neon Red/Grey / 24-inch | 07630027887402 | 30002686 | BMC358637414 |
